DETECTOR SWITCHES

CDS-1120P
Typical Specifications
1.Rating : DC 30V 0.1A
2.Circuit : 1C-1P
3.Timing : Non-Shorting
4.Travel : 0.8±0.1
5.Contact Resistance : 40 gf max
6.Operating Life : 50,000 Cycles

  PART   MATERIAL
  TERMINAL   PHOSPHOR BRONZE
  CASE   NYLON 66
  CLIP   PHOSPHOR-BRONZE
  ACTUATOR   ACETAL
  BRACKET   ELECTRO TEMPLATE
  COVER   NYLON 66

¡¡Features ¡¡Application
Light operating force : 40gf max.

Highly reliable contact through our own self-wiping leaf contact construction

Available for vertical and horizontal type
Detecting the insertion of various media

Identification of tapes in VCR,casesette deck, etc

Detecting the operation of VCR, cassette mechannism,etc

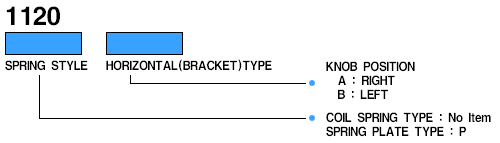

¡¡Order Code Explanation

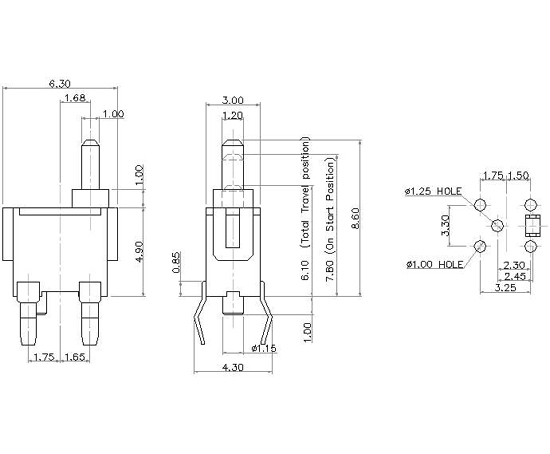

¡¡OUTLINE DRAWING

¡¡
¡¡
