CMS-1284
Typical Specifications
1.Rating : DC 6V 0.3mA
2.Circuit : 1C-2P
3.Timing : Non-Shorting
4.Operating Force(OF) : 60gf Max
5.Release Force(RF) : 8gf Min
6.Over Travel(OT) : 0.3mm Min
7.Movement Different(MD) : 0.7mm Min
8.Free Position(OP) : 9.6mm Max
9.Operating Position(OP) :6.7±0.5mm

  PART   MATERIAL
  TEMINAL   BRASS
  CASE   P.B.T
  COVER   NYLON 66
  LEVER   NYLON 66
  SPRING PLATE   C-1720RHM
  PLUNGER   NYLON 66

¡¡Features ¡¡Application
Compact detector switch for micro-current circuit
Miniature Micro switch
Compact audio products, office machines
Compact radio equipment, VCRS, camera recorder, etc

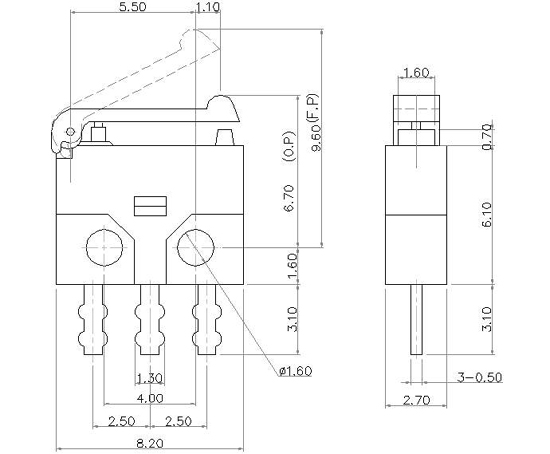

¡¡OUTLINE DRAWING
