CLS-1502A
Typical Specifications
1.Rating MAX : DC 5V 10mA
2.Output Voltage : 1V Min at 5V DC 1mA
¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡(Resistive Load)
3.Insulation Resistance : 100m§Ùmin 100V DC
4.Robustness of Actuator : 510gf for 1min
5.Operating Life : 100,000 Cycles
6.Operating Force : Lever Portion : 70gf
¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡ ¡¡Push Portion : 200gf
7.Without location Lug

¡¡Features ¡¡Application
The operation function of the control unit enables center push operation

Compound operation using a sing knob is realized

Compact size and low-profile forms are available for tape and reel packaging
Communication equipment operation such as portable telephones.
Compact, portable unit such as VCR cameras, streo headphones, car radios, etc

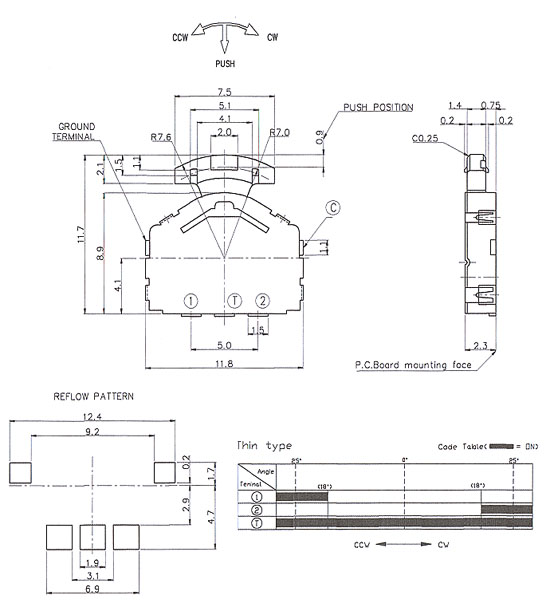

¡¡OUTLINE DRAWING
