CLS-5202 (5POINTS)
Typical Specifications
1.Operating force
¡¡4-Directional : 130gf
¡¡Center push : 250gf
2.Travel
¡¡4-Directional : 0.25mm
¡¡Center push : 0.15mm
3.Rating : 50mA 12V DC
4.Lifetime : 200,000 cycles
5.Initial contact resistance : 500m§Ù max
6.With or Without guide bosses


¡¡Features ¡¡Application
¢º4-directional, center-push switch with a body height of 1.8mm for compact and slimmer set design.
¢ºMulti-directional input type with four directions plus push down.
¢ºContributing to smaller space designing by its.
¢ºSuitable for reflow-soldering.
¢ºDigital camera and digital video camera
¢ºPortable audio devices
¢ºCellular Phone and personal information devices
¢ºOperation unit of other digital devices

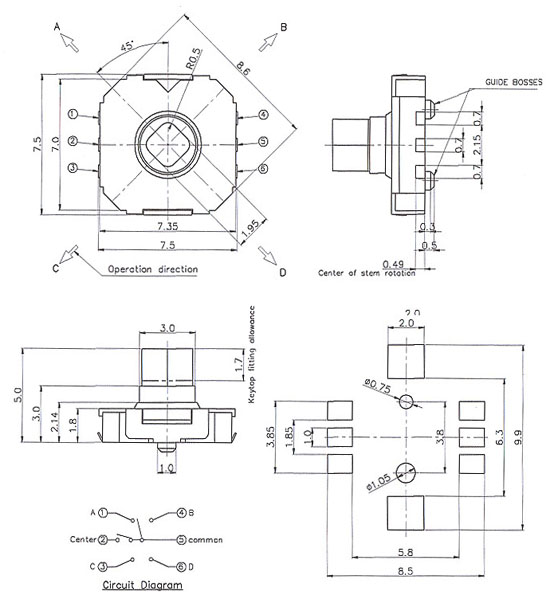

¡¡OUTLINE DRAWING

¡¡
¡¡
