CLS-1501A
Typical Specifications
1.Rating : DC 5V 10mA
2.Output Voltage : 1V Min at 5V DC 1mA
¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡(Resistive Load)
3.Operating Force : Lever Portion : 70gf
¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡ ¡¡Push Portion : 200gf
4.Operating Life : 100,000 Cycles

¡¡Features ¡¡Application
The operation function of the control unit enables center push operation

Compound operation using a sing knob is realized

Compact size and low-profile forms are available for tape and reel packaging
Communication equipment operation such as portable telephones.
Compact, portable unit such as VCR cameras, streo headphones, car radios, etc

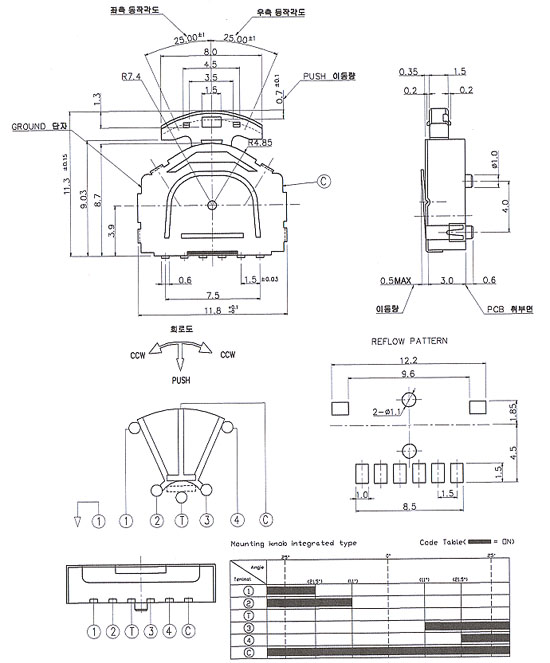

¡¡OUTLINE DRAWING

¡¡
¡¡
