CLS-1502
Typical Specifications
1.Rating MAX : DC 5V 10mA
2.Output Voltage : 1V Min at 5V DC 1mA
¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡(Resistive Load)
3.Insulation Resistance : 100m§Ùmin 100V DC
4.Robustness of Actuator : 510gf for 1min
5.Operating Life : 100,000 Cycles
6.Operating Force : Lever Portion : 70gf
¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡ ¡¡Push Portion : 200gf
7.Without location Lug

¡¡Features ¡¡Application
The operation function of the control unit enables center push operation

Compound operation using a sing knob is realized

Compact size and low-profile forms are available for tape and reel packaging
Communication equipment operation such as portable telephones.
Compact, portable unit such as VCR cameras, streo headphones, car radios, etc

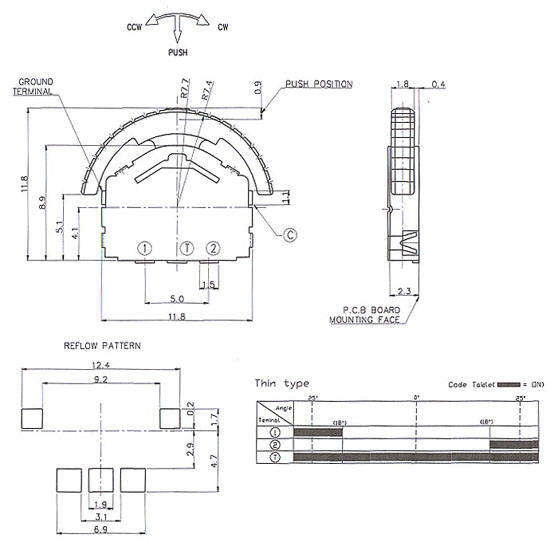

¡¡OUTLINE DRAWING

¡¡
¡¡
