| [1370 HR-1] |
|
 |
|
| Typical
Specifications |
|
1.Rating : DC 4V,0.3A
2.Circuit : 1C-3P
3.TIMING : NON-SHORTING
4.Travel : 2mm
5.Operating Force
¡¡- b¡æc : 250±100gf
¡¡- c¡æb : 200±100gf
¡¡- b¡æa : 200(+50/-100)gf
6.Operating Life :10,000 Cycles
|
|
|
|
| ¡¡Features |
¡¡Application
|
¢º2mm travel.
¢ºRecoil type also available.
¢ºReflow-soldering type also available.
|
|
| ¢ºFunction and band selector switches for headphone stereo sets,liquid-crystal TV sets, car radios,camera, VCRs, memory cards, etc. |
|
|
|

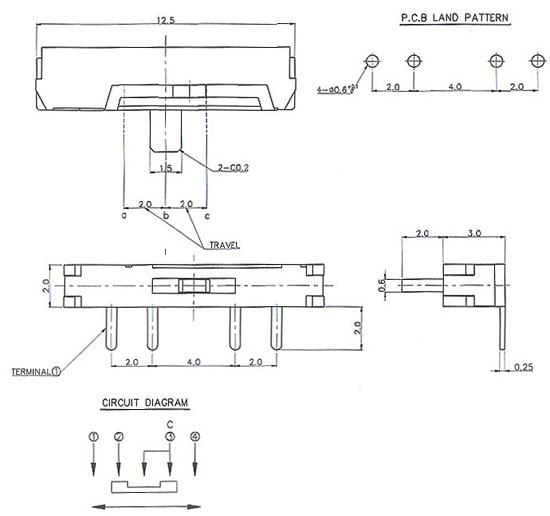

| ¡¡OUTLINE
DRAWING |
|
|
 |
|
|
|
|
|
|
