| [2346S] |
|
 |
|
| Typical
Specifications |
|
1.Rating : DC 6V 0.3mA
2.Circuit : 1C-3P
3.Timing : Non-Shorting
4.Travel : 2+2mm±0.1
5.Operating Force : a->b,c->b:200±100gf
¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡b->a,b->c:250±100gf
6.Operating Life :50,000 Cycles
|
|
|
|
| ¡¡Features |
¡¡Application
|
¢º2mm Travel
¢ºReflow-soldering type
¢ºAvailable for tape and reel pachage
|
|
| Function and band selector switches for headphone stereo sets, liquid-crystal TV sets car radios, camera VCRs, memory cards, etc. |
|
|
|

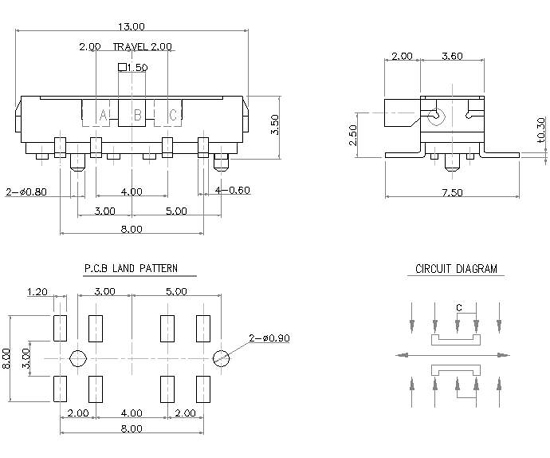

| ¡¡OUTLINE
DRAWING |
|
|
 |
|
|
|
|
|
|
