| [1380T] |
|
 |
|
| Typical
Specifications |
|
1.Rating : DC 6V 0.3mA
2.Circuit : 1C-3P
3.TIMING : NON-Shorting
4.Travel : 2+2mm
5.Operating Force : a->b,c->b:120±100gf
¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡b->a,b->c:250±100gf
6.Operating Life :10,000 Cycles
| PART |
MATERIAL |
| TERMINAL |
BRASS |
| CASE |
NYLON 46 |
| CLIP |
PHOSPHOR-BRONZE |
| SLIDER |
NYLON 46 |
| COVER |
STAINLESS-STEEL |
|
|
|
|
| ¡¡Features |
¡¡Application
|
¢º2mm Travel
¢ºReflow-soldering type
¢ºAvailable for tape and reel package
|
|
| ¢ºFunction and band selector switches for headphone stereo sets,liquid-crystal TV sets car radio,camera VCRs, memory cards, etc. |
|
|
|

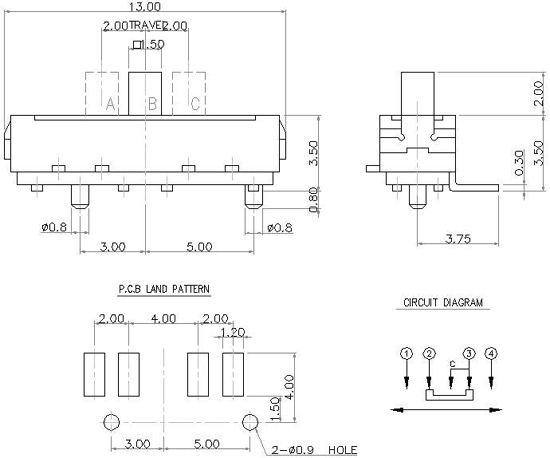

| ¡¡OUTLINE
DRAWING |
|
|
 |
|
|
|
|
|
|
