| [1400] |
|
 |
|
| Typical
Specifications |
|
1.Rating : DC 4V 0.3A
2.Circuit : 2P-3P
3.TIMING : NON_SHORTING
4.Travel : 1.5±1.5
5.Operating Force : a->b,c->b:200±150gf
¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡¡b->a,b->c:200±150gf
6.Operating Life :10,000 Cycles
¢º1400A:(L)1.00mm
¢º1400B:(L)2.50mm
| PART |
MATERIAL |
| TERMINAL |
BRASS |
| CASE |
ARLEN |
| CLIP |
PHOSPHOR-BRONZE |
| KNOB |
NYLON46 |
| SPRING PLATE |
SHOSPHOR-BRONZE |
| COVER |
STAINLESS-STEEL |
|
|
|
|
| ¡¡Features |
¡¡Application
|
¢ºthin type 1.5mm in height
¢ºSMT type and reflow-soldering for Surface mounting
¢ºAvailabe for tape and reel package
|
|
| Function and band selector switches for headphone stereo sets, liquid-crystal TV sets, car radios, camera VCRs, memory cards, etc |
|
|
|

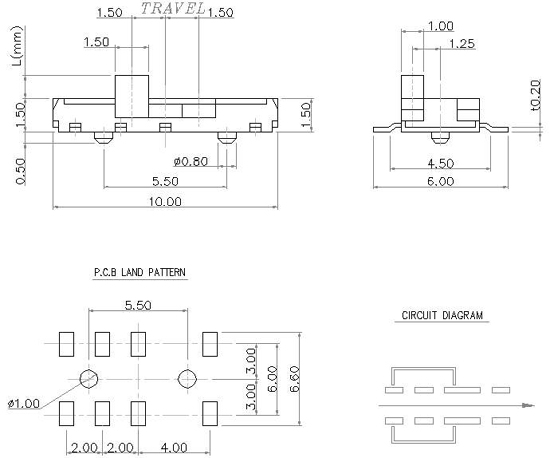

| ¡¡OUTLINE
DRAWING |
|
|
 |
|
|
|
|
|
|
