[1390]
Typical Specifications
1.Rating : DC 4V 0.3A
2.Circuit : 2C-2P
3.TIMING : NON_SHORTING
4.Travel : 1.5±1.5
5.Operating Force : 200±150gf
6.Operating Life :10,000 Cycles
¢º1390A : (L) 1.00mm
¢º1390B : (L) 2.00mm
PART
MATERIAL
TERMINAL
BRASS
CASE
ARLEN
CLIP
PHOSPHOR-BRONZE
KNOB
NYLON 46
SPRING PLATE
PHOSPHOR-BRONZE
COVER
STAINLESS-STEEL
¡¡Features
¡¡Application
¢ºthin type 1.5mm in height
¢ºSMT type and reflow-soldering for Surface mounting
¢ºAvailabe for tape and reel package
Function and band selector switches for headphone stereo sets, liquid-crystal TV sets, car radios, camera VCRs, memory cards, etc
¡¡

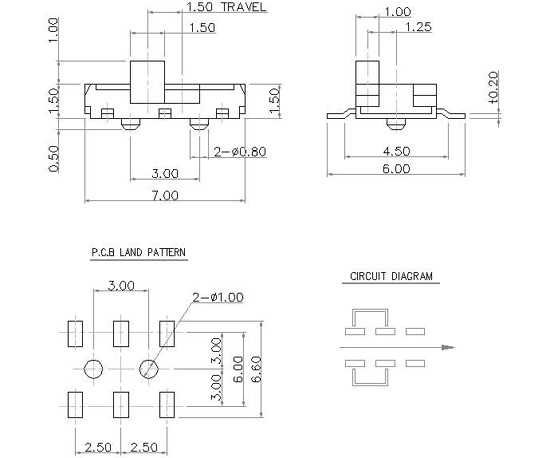

OUTLINE DRAWING
¡¡
¡¡
