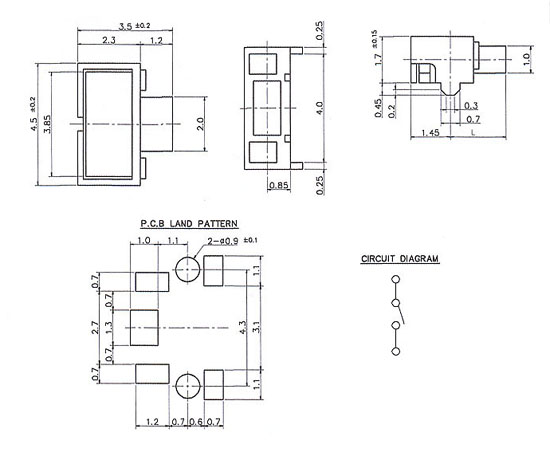

1.This is surface mounted switch. Compared to the standard configuration(4.5 X 2.3 mm).
2.This horizontal type switch allows pushing from a side of a soldered PCB.
3.The switch supported reflow soldering.
|
|
| Portable terminals, diverse function control switches(TVs,VCR,cameras) |
|
