| CTS-1107GS |
|
 |
|
| Typical
Specifications |
|
1.Rating : DC 12V 50mA
2.Circuit : 1C-1P
3.Travel : 0.25mm±0.1
4.Operating Force : 130,180,250±30gf
5.Contact Resistance : 100m §ÙMax
6.Operating Life :50,000 Cycles
| PART |
MATERIAL |
| TERMINAL |
BRASS |
| CASE |
NYLON 46 |
| CONTACT |
STAINLESS STEEL |
| DUST COVER |
POLYIMIDE |
| COVER |
STAINLESS STEEL |
| STEM |
NYLON 46 |
|
|
|
|
| ¡¡Features |
¡¡Application
|
¢º 6.1* 3.7mm square thin type:2.5mm in height
¢º Excellent clear click feeling due to tactile feedback characteristic.
¢º Reflow soldering applicable
¢º Dust proof construction
¢º Available for tape and reel package
|
|
| Operating push-button switches for portable CD or MD players |
|
|
|
| ¡¡Order
Code Explanation |
 |

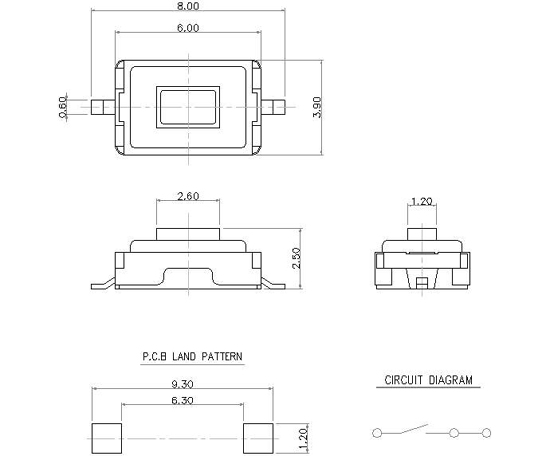

| ¡¡OUTLINE
DRAWING |
|
|
 |
|
|
|
|
|
|
