| CTS-1111 |
|
 |
|
| Typical
Specifications |
|
1.Rating : DC 12V 50mA
2.Circuit : 1C-1P
3.Travel : 0.30mm±0.1
4.Operating Force : 120,200±50gf
5.Contact Resistance : 100m §ÙMax
6.Operating Life :50,000 Cycles
| PART |
MATERIAL |
| TERMINAL |
BRASS |
| CASE |
NYLON 46 G30 |
| CONTACT |
SUS 301-H |
| SPRING PLATE |
AG-C5210R-EH |
| COVER |
SUS 304-EH |
| STEM |
SILICON RUBBER |
|
|
|
|
| ¡¡Features |
¡¡Application
|

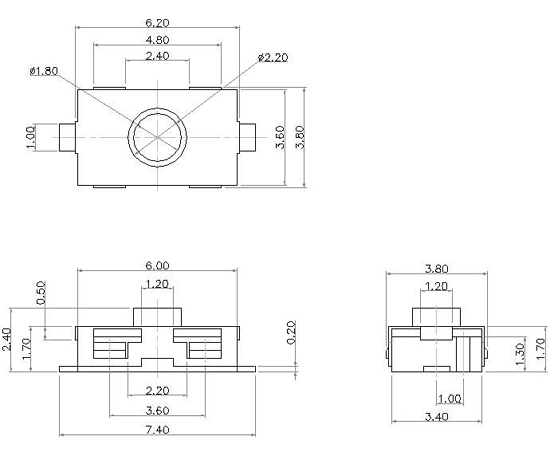

6.0 X 3.8mm square thin type:2.5mm in height.
Exellent clear click feeling due to tactile feedback characteristic.
Reflow soldering applicable.
Dust proof construction.
Available for tape and reel package.
|
|
| Operating push-button switches for portable Phone, Car Audio. |
|
|
|
| ¡¡Order
Code Explanation |
 |
|
|
|
|
|
|
