| [THERMAL] |
|
 |
|
| Typical
Specifications |
|
1. Operating temp - setting range : from 50¢ªC to 150¢ªC
2. Operating temp - Tolerance : + / - 5
3. Standard differential : 30 + / - 15k(General),-10¢ªC or lower
4. Contact ratings : 14A/125V,7A/250V AC 10,000 cycles(resistive)
5. Wire(UL 3266 #22 BLACK)
6. Contact system(Normally closed)
7. UL 2111 Motor Proctective Device
8. VDE
|
|
|
|
| ¡¡Features |
¡¡Application
|
¢ºPBT Resin case with epoxy seal.
¢º100% water proof.
¢ºSnap Action, Automatic reset bimetals.
|
|
¢ºOverheat Protector for Electric motors, Fluorescent Ballasts.
¡¡Heating Pads, Transformers, Solenoids,OA-Machines etc... |
|
|
|

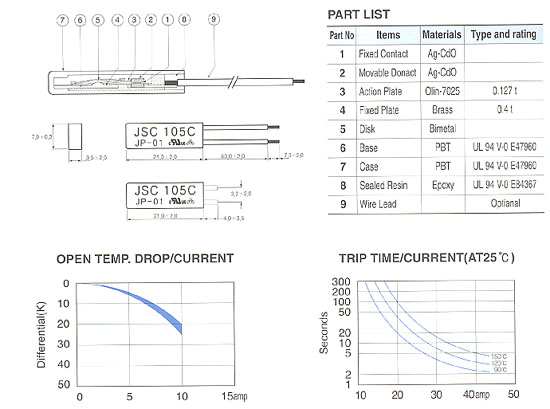

| ¡¡OUTLINE
DRAWING |
|
|
 |
|
|
|
|
|
|
