　 ＝ Comprehension of BGA Ball attach tool
　
　
　
1) Technical development of Ball attach tool.
　
　 　
　
mm ( inch )
　
BALL SIZE
PACKAGE
PITCH
0.76 (0.030)
PBGA
PBGA
FILE-CHIP
SEL, & GEL
1.27 (0.05)
1.0 (0.039)
1.27 (0.05)
1.27 (0.05)
0.60 (0.024)
ACSP
1.27 (0.05)
0.45 (0.018)
Flex-BGA
WSCSP
1.0 (0.039)
0.8 (0.031)
0.40 (0.016)
SCSP
SCSP2
0.8 (0.031)
0.8 (0.031)
0.33 (0.013)
U-BGA
CV-BGA
0.75(0.029)
0.75(0.029)
0.30 (0.012)
CV-BGA
Ultra thin
0.5 (0.019)
0.5 (0.019)
0.20 (0.008)
Fine pitch
0.4 (0.016)
　 　
　
　

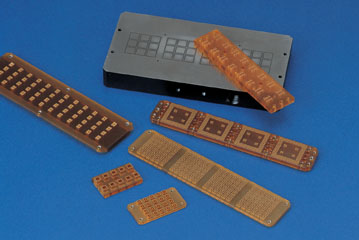

2) Fine pich ( 0.4mm ) Bumping tools
