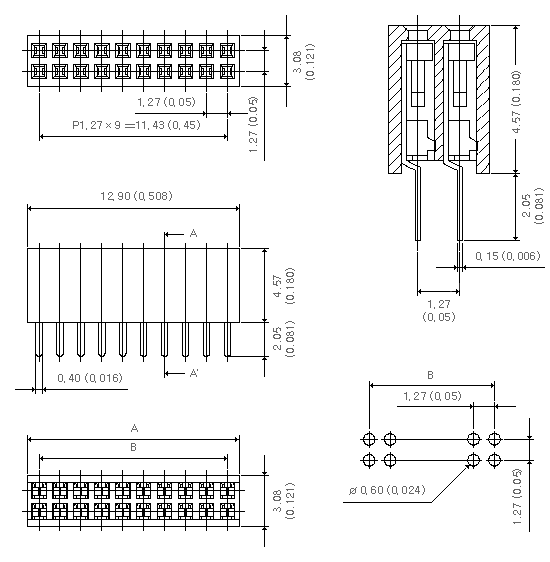

RT-1.27P-457 |
1.27(0.050)PITCH FEMAIL CONNECTOR |
|
|
| |
|
| |
|
|
|
|
PART NUMBER
|
A
|
B
|
|
RT-1.27P-457-08
|
5.28 (0.208)
|
3.81 (0.15)
|
|
RT-1.27P-457-20
|
12.90 (0.508)
|
11.43 (0.45)
|
|
RT-1.27P-457-24
|
15.44 (0.608)
|
13.97 (0.55)
|
|
RT-1.27P-457-30
|
19.25 (0.758)
|
17.78 (0.70)
|
|
RT-1.27P-457-32
|
20.52 (0.808)
|
19.05 (0.75)
|
|
RT-1.27P-457-34
|
21.79 (0.858)
|
20.32 (0.80)
|
|
RT-1.27P-457-36
|
23.06 (0.908)
|
21.59 (0.85)
|
|
RT-1.27P-457-38
|
24.33 (0.958)
|
22.86 (0.90)
|
|
RT-1.27P-457-40
|
25.60 (1.008)
|
24.13 (0.95)
|
|
RT-1.279-457-50
|
31.95 (1.258)
|
30.48 (1.20)
|
|
| |
|
| |
|
|
|
|
|
| |
|
