N200
series |
3.18(0.125)
Test Center
|
|
|
| |
|
|
|
|
|
| |

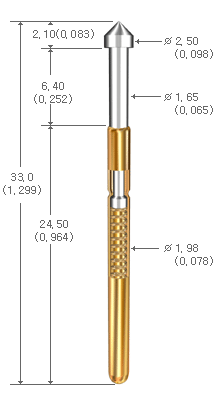

| Spring Contact
Probe Specification |
|
| |
| ＝ ELECTRICAL (Static Conditions) |
| |
Current ratung: 3 amp |
| |
Continuity resistance: 25 mз |
|
| |
| ＝ MATERIAL and FINISHES |
| |
Plunger : Heat-treated Berllium copper, |
| |
| |
Rhodium plated over nickel |
| |
(Optional gold plated over nickel) |
|
| |
|
| |
Barrel : Brass |
| |
| |
Gold plated(ID, and OD) over
nickel |
|
| |
|
| |
Spring : Music wire or Stainless wire
|
|
| |
| |
| |
| |
|
|
|
|
|
|
SPRING FORCE
|
Preload
|
2/3 Travel
|
Full Travel
|
|
|
|
|
|
grams (± 20%)
|
50
|
128
|
228
|
|
|
|
|
|
|
| |
|
| |
|
 |

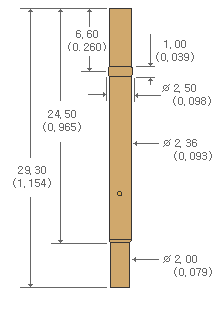

| Receptacles Specification |
|
| |
| ＝ Recommended diameter of drill : 2.40 (0.094) |
| |
| ＝ Material & plated finishes |
| |
Receptacle : Brass |
| |
| |
Gold plated(ID,and OD) over
nickel |
|
|
|
| |
| |
| |
|
|
| |
| |
|
|
|
|
|
