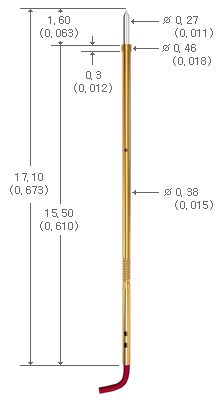

N38
series |
0.55(0.020)
Test Center
|
|
|
| |
|
|
|
|
|
| |
| Spring Contact
Probe Specification |
|
| |
| ＝ ELECTRICAL (Static Conditions) |
| |
Current ratung: 1 amp |
| |
Continuity resistance: 50 mз |
|
| |
| ＝ MATERIAL and FINISHES |
| |
Plunger : SK |
| |
| |
Rhodium plated over nickel |
|
| |
|
| |
Barrel : Brass |
| |
| |
Gold plated(ID, and OD) over
nickel |
|
| |
|
| |
Spring : Music wire or Stainless wire |
| |
|
|
| |
| |
| |
| |
|
|
|
|
|
|
SPRING FORCE
|
Preload
|
2/3 Travel
|
Full Travel
|
|
|
|
|
|
grams (± 20%)
|
20
|
45
|
95
|
|
|
|
|
|
| |
| ＝ Recommended diameter of drill : 0.4(0.016) |
| |
|
| |
|
|
| |
|
|
|
|
